WDP Remote Controle
Remote controller for Win-Digipet – select a train and drive it. Function buttons can also be activated.
DCC Servo Dekoder
DCC Servo Decoder – controls up to 16 servos. Simple and intuitive configuration of each servo’s start angle, end angle, and movement speed. It is possible to configure up to 4 positions per servo. The DCC Servo Decoder can now automatically release the PWM signal to a servo once the programmed position has been reached. mark "Release PWM"
DCC/MQTT Lysdekoder
Controls programmable LED strips. Can be controlled via both DCC and MQTT. Supports up to five LED strips. Each LED strip can have up to 50 LED's.
DCC/MQTT Light Dekoder
Control of programmable LED strips with current monitoring. Can be controlled via both DCC and MQTT. Up to 5 LED strips with up to 50 LEDs per strip. An INA226 continuously measures voltage, current and power, which are displayed on the OLED and in the web configuration. This makes it easy to monitor the total current consumption and prevent overload.
DCC Tivoli Matrix
Controls programmable LED matrix displays. Various animation patterns suitable for amusement parks and fairgrounds can be shown.
MQTT MedieInfo
Controls a 1.3 or 0.6 -inch TFT display. Shows selected images and/or information screens with data from an MQTT broker, such as weather information, stock prices, and more.
MedieInfo - MAX
MedieInfo MAX is a compact media center based on a 3.5" ESP32-S3 touch display. Show pictures and slides, play music and video with sound, and manage the content from the built-in web-config interface. Media is stored on an SD card, with WiFi and MQTT integrated.
MP3 Player
Plays MP3 files – ideal for sound effects in buildings, station platforms, and other model railway scenes.
Transformer Viewer
Measures the power consumption of up to four transformers and publishes the measurements to an MQTT broker.
DCC SoundCenter
MP3 player with DCC interface. Create your own playlists and upload MP3 files directly from the web interface.
DCC/MQTT MP3 Player
Compact MP3 player for model railways based on ESP32-S3 Zero and DFPlayer Mini. Play sounds via DCC, MQTT or the web interface. Simple mode for easy playback and Expert mode with four configurable playlists. Supports up to 30 DCC addresses.
Ankomst
Platform arrival display showing real-time arrival information for Kælderkøbing Central Station.
Benzinskilt
Fuel Price Display – shows fuel prices on a small TFT display. Prices change at configurable intervals, and the displayed valuesare randomly selected within a user-defined minimum and maximum range.
FlagMQTT
Animated flag that can wave in the wind, controlled via MQTT. Wave speed and movement amplitude are configurable.
TempMQTT
Displays humidity and temperature. Sensor data is published to an MQTT broker.
ProjectUnion Starter
Demo project for testing the ProjectUNION_Core library.
ProjectUnion DCC Demo
Demo project for testing the ProjectUNION_DCC library.
ProjectUnion MQTT Demo
Demo project for testing the ProjectUNION_MQTT library.

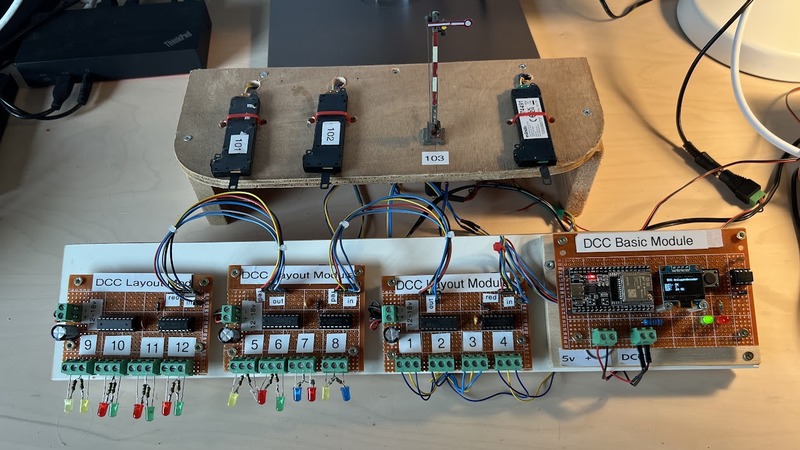

DCC Layout module
DCC Layout Decoder is a flexible accessory decoder for functions needed on almost every model railway: turnouts, signals, building lights and other devices that need to be switched on and off. Unlike many traditional and often more expensive decoders, the DCC Layout Decoder is easily configured using a web browser. The system consists of one DCC Basic Module, to which up to 4 DCC Layout Modules with 8 outputs each can be connected. This allows control of up to 16 turnouts/signals or 32 individual outputs – or any combination of them. Outputs can be configured as Momentary (K83) or Permanent (K84). Permanent outputs can operate as normal On/Off switches or as Light outputs, where brightness and effects such as Fade, Blink, Slow Blink, Flicker and Beacon can easily be selected in the web configuration.
